CONVERT MATERIAL

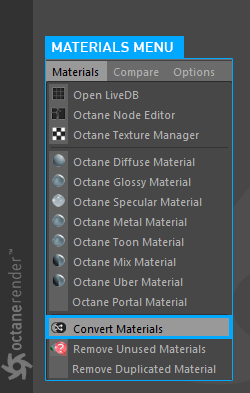

You can use this tool to convert Cinema 4D material to Octane material. The conversion process works better with simple C4D materials and you get almost the same result. However, converting the complex Cinema 4D material is a little bit tricky and you need to work on the material that is created after the conversion.

转换材质

您可以使用此工具将Cinema 4D材质转换为Octane材质。 使用简单的C4D材质，转换过程会更好地工作，您可以获得几乎相同的结果。 但是，转换复杂的Cinema 4D材质有些棘手，您需要处理转换后创建的材质。

converSIon process

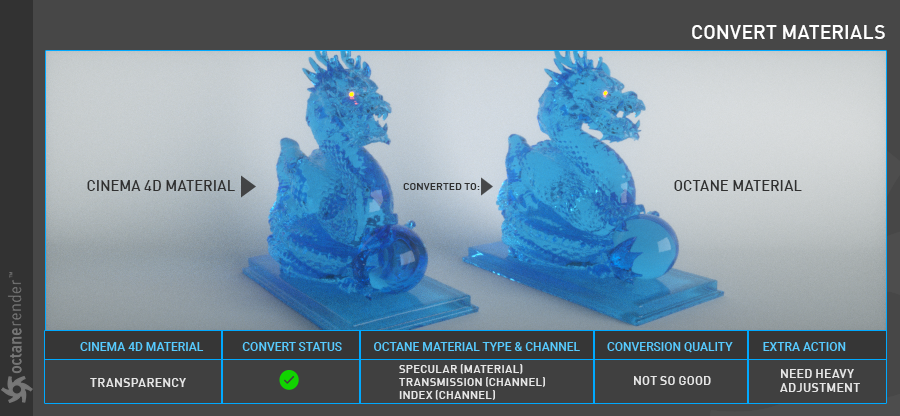

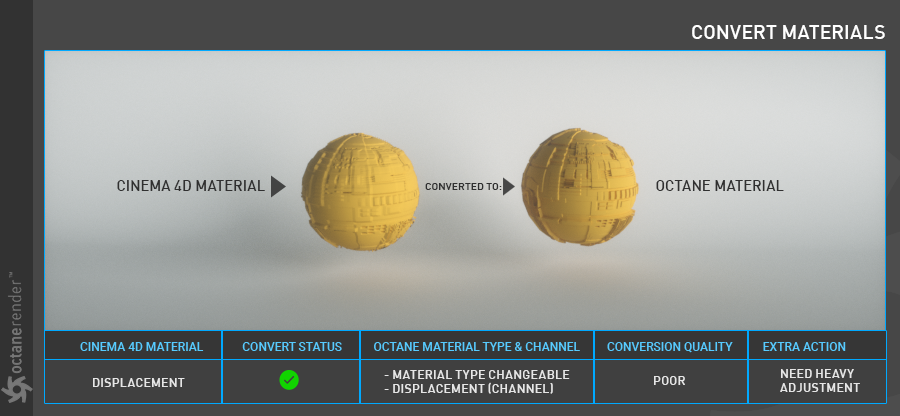

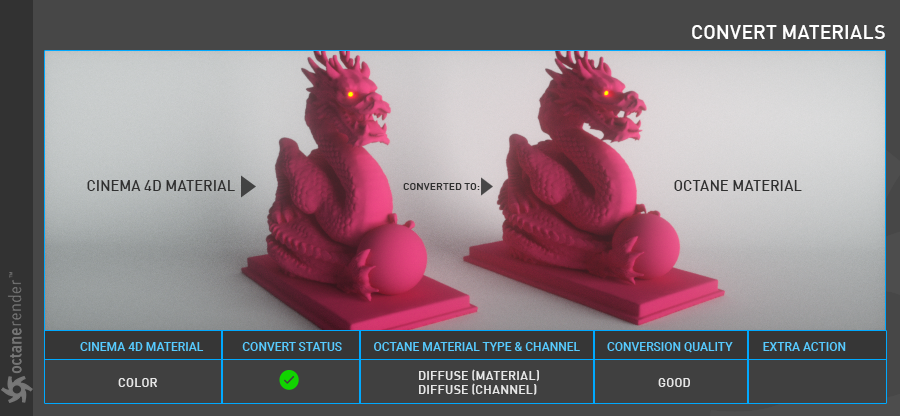

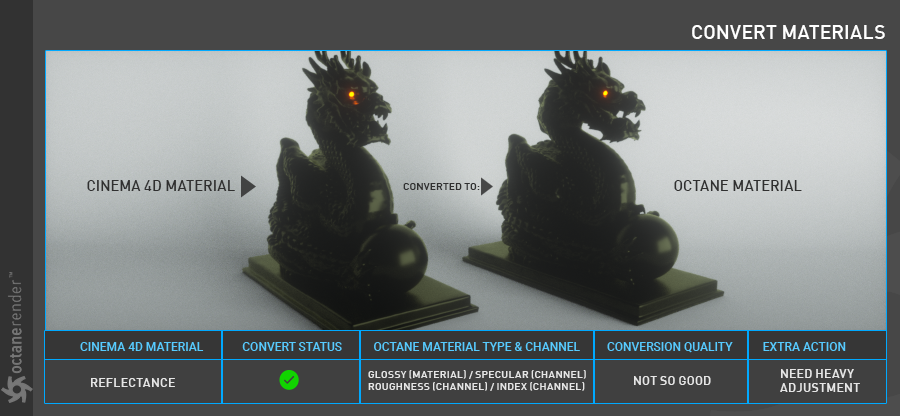

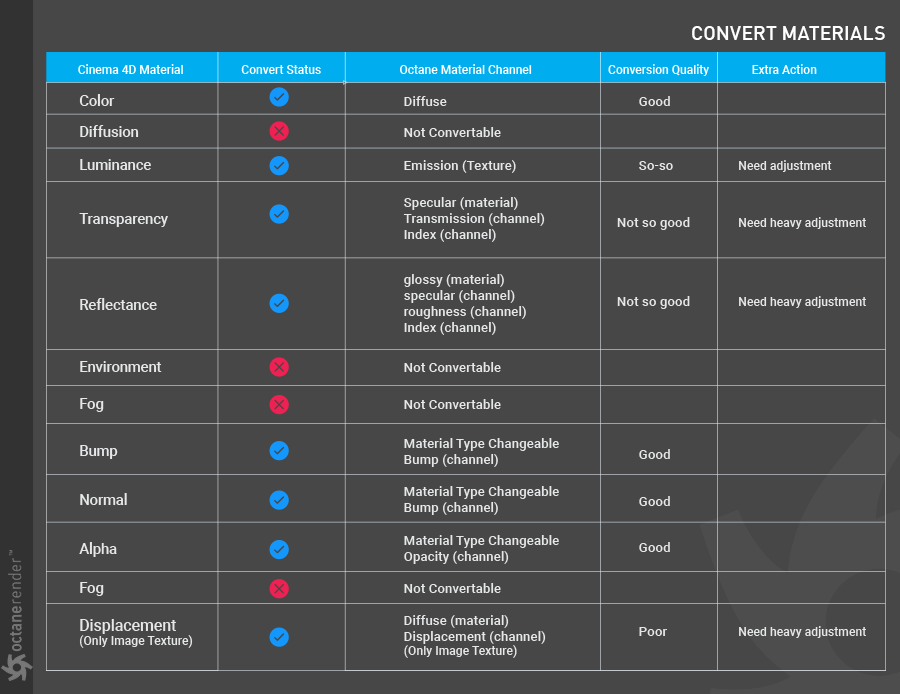

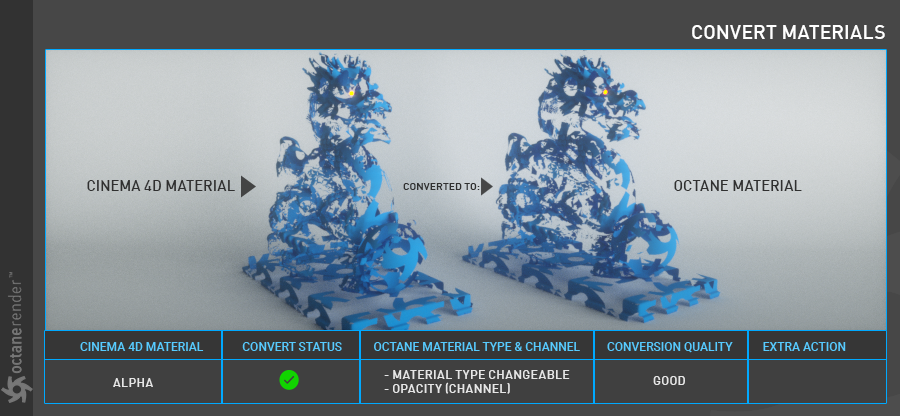

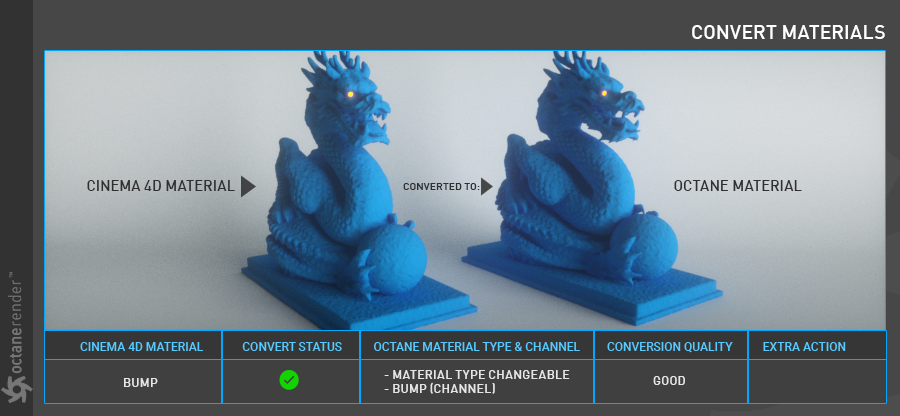

When you convert any Cinema 4D material, what Octane does is to adapt the Cinema 4D material channels to its own channels. This adaptation gives good results for some channels, but not for the others. Therefore, it may be necessary to set it manually. In the pictures below you will see which cinema 4d channel is converted to which octane channel. The table at the end of the page contains the conversion results of all channels.

融合过程

转换任何Cinema 4D材质时，Octane所做的就是使Cinema 4D材质通道适应其自己的通道。 这种改编对于某些频道可提供良好的结果，而对于其他频道则不会。 因此，可能需要手动设置。 在下面的图片中，您将看到哪个Cinema 4d通道转换为哪个Octane通道。 页面末尾的表格包含所有通道的转换结果。
