VIEW MENU
From this menu you can find some viewing functions regarding to the node editor. Let's take a look at them:
查看菜单
从此菜单中,您可以找到有关节点编辑器的某些查看功能。 让我们看看它们:

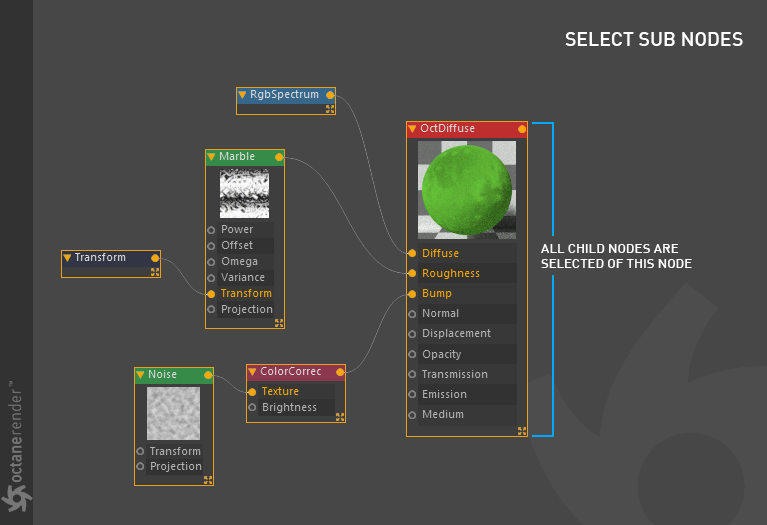

Select sub nodes
With this option you can select all the children of any node. So you will be able to select all at once, without having to select individual or rectangular with the mouse. This option is especially good for choosing the same type of nodes and changing settings.
选择子节点
使用此选项,您可以选择任何节点的所有子代。 因此,您将能够一次选择所有内容,而不必使用鼠标选择单个或矩形。 对于选择相同类型的节点并更改设置,此选项特别有用。
auto arrange selected
This option will automatically arrange the nodes you select.
自动安排选择
此选项将自动排列您选择的节点。
chIld selectIon
If there are other child nodes connected to the selected node, it will automatically select the child nodes. This option is also used to select all child nodes in the hierarchy. For example, you can select all child nodes of your main node with this option. Works in toggle mode, you can turn it on and off.
子选择
如果有其他子节点连接到所选节点,它将自动选择子节点。 此选项还用于选择层次结构中的所有子节点。 例如,您可以使用此选项选择主节点的所有子节点。 在切换模式下工作,可以将其打开和关闭。

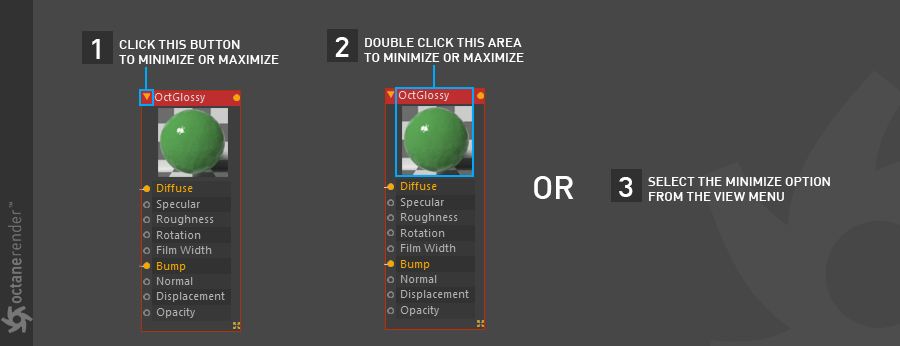

MINIMIZE NODE
You can minimize or maximize any node for more comfortable working. There 3 ways to do this:
1- by using node's triangle button
2- double click the title area.
3- or select this option from the view menu
最小化节点
您可以最小化或最大化任何节点,以使工作更舒适。 有3种方法可以做到这一点:
1-通过使用节点的三角形按钮
2-双击标题区域。
3-或从视图菜单中选择此选项
FRAME ALL
With this option you can see all nodes in the editor area. It's like a zoom out.
框架全部
使用此选项,您可以在编辑器区域中查看所有节点。 就像缩小。
FRAME SELECTED
You will only see the selected node close up.
框架选择
您只会看到所选节点关闭。
ZOOM
Used to zoom in the node editor. You can also use mouse + keyboard combinations as described in the Interface menu..
放大
用于放大节点编辑器。 您还可以按照“界面”菜单中的说明使用鼠标+键盘组合。
